Customised Motion Controller Supplier in India

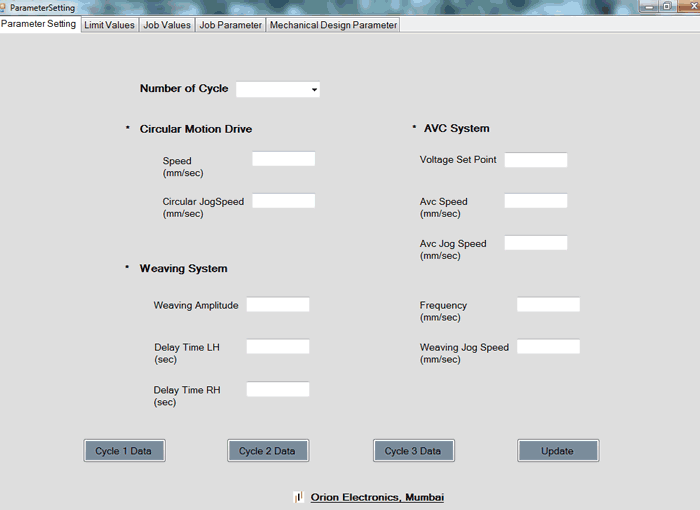

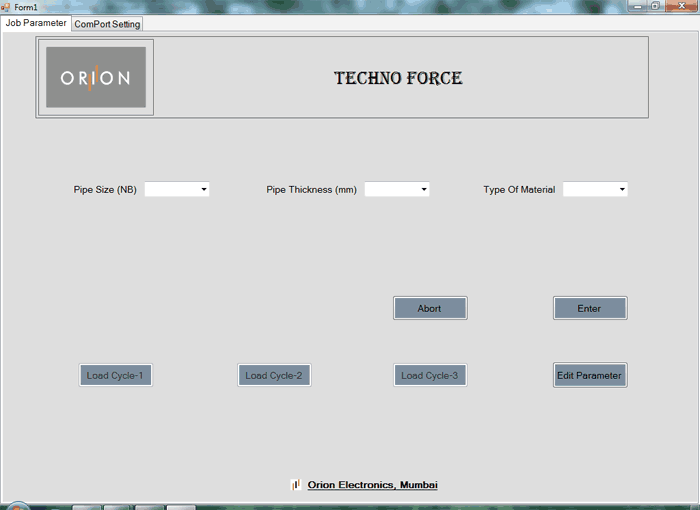

Pipe Welding Automation with custom made Software

automation-solutions-with-PC-based-software-orion-electronics

As illustrated in the figure above, two pipes are welded together in the process. The system is a 3 axis system controlled via a PC. The interface software which is part of our supply provides user facility to set and change various parameters.

Rotary Indexing System with customized Software

automation-solutions-rotary-indexing

In this system, we automated the rotary turn table by using stepper motor. The controls were through a Orion designed PC-based software. The user simply had to click on the screen at any of the circular slots on the table. By using a MODBUS protocol, the turntable moved by exact no. of degrees to reach that position. The speed of the movement was also settable. The stepper drive Orion-make MSD-3A-256-80, a custom designed drive for rotary indexing was used here.

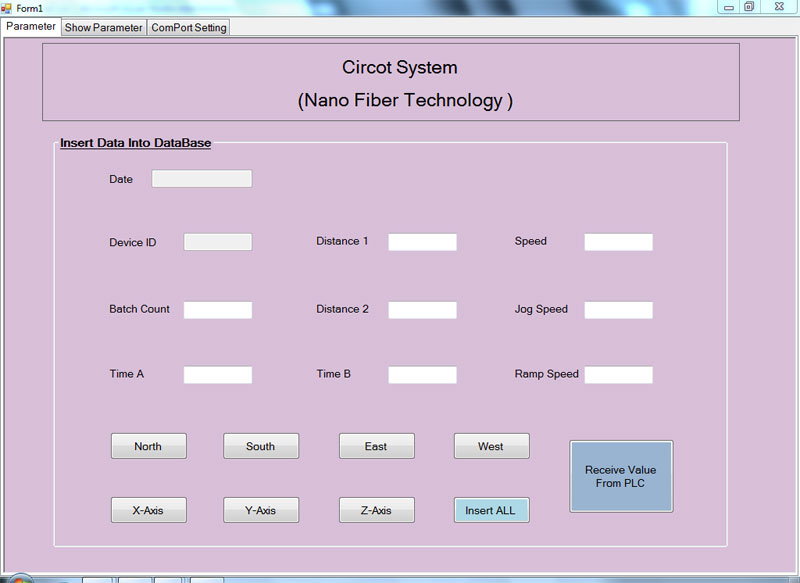

7-axis Cotton Spinning System for Circot

Software-GUI-for-7-axis-Cotton-Spinning-machine

Presently, installed and running at CIRCOT, Mumbai, this 7-axis system was a highly successful automation solution fully designed and developed by Orion. Our designed panel had 7 stepper Drives+ that were controlled by Orion-make Pendant controller (a hand-held terminal). Simultaneous motion of seven axis was required.
